2023 Yamaha Raptor 90

Stock #T014578
MSRP: $3,299 USD
Freight Price: $425
Total: $3,724
MSRP: $3,299 USD

129 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Yamaha Raptor 90 . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2023 Yamaha Raptor 90
  • VIN:
    RF3AB11E7PT014578
  • Model Number:
    YFM09RYXPW
  • Color:
    White
  • Stock Number:
    T014578
  • Title:
    Clear
  • Location:
    Cycle Max
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Dual Sealed Drum
  • Rear Brake Type:
    Drum

DRIVE LINE

  • Driveline Type:
    4X2
  • Number Of Driveline Modes:
    1
  • Rear Solid Axle:
    Yes

ENGINE

  • Bore (in):
    1.85
  • Bore (mm):
    47
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    13
  • Carburetor:
    Yes
  • Compression Ratio:
    9.2
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    90
  • Displacement (ci):
    5.5
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Speed Governor:
    Yes
  • Starter:
    Electric / Kick
  • Stroke (in):
    2.04
  • Stroke (mm):
    51.8
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Driver
  • Frame:
    Steel

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    29.5
  • Seat Height (mm):
    749.3
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    A-Arm
  • Front Travel (in):
    5
  • Front Travel (mm):
    127
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    5.7
  • Rear Travel (mm):
    144.8

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    0.32
  • Fuel Capacity (gal):
    1.7
  • Fuel Capacity (l):
    6.4
  • Ground Clearance (in):
    3.9
  • Ground Clearance (mm):
    99.1
  • Height (in):
    37.6
  • Height (mm):
    955
  • Length (ft):
    4.88
  • Length (ft/ft):
    4
  • Length (ft/in):
    10.5
  • Length (in):
    58.5
  • Length (mm):
    1485.9
  • Wet Weight (kg):
    126.6
  • Wet Weight (lbs):
    279
  • Wheelbase (in):
    40.6
  • Wheelbase (mm):
    1031.2
  • Width (in):
    40.2
  • Width (mm):
    1021.1

TRANSMISSION

  • Primary Drive (Rear Wheel):
    Chain
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

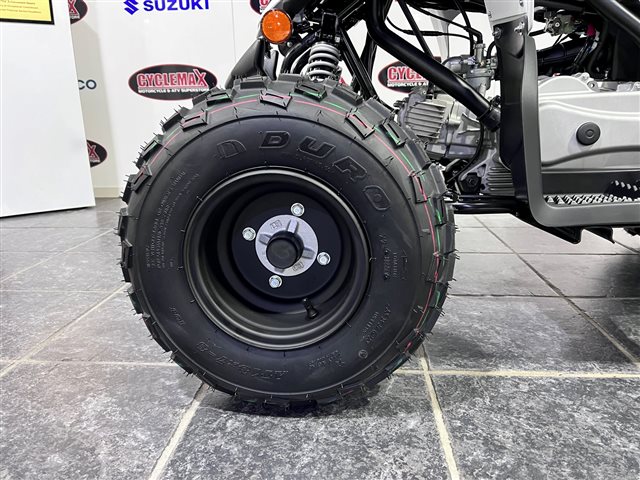

WHEELS & TIRES

  • Front Tire (Full Spec):
    Duro AT 18 X 7-8
  • Front Tire Diameter (in):
    18
  • Front Tire Width:
    7
  • Front Wheel Diameter:
    8
  • Rear Tire (Full Spec):
    Duro AT 18 X 9-8
  • Rear Tire Diameter (in):
    18
  • Rear Tire Width:
    9
  • Rear Wheel Diameter:
    8
  • Tire Brand:
    Duro
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Steel
