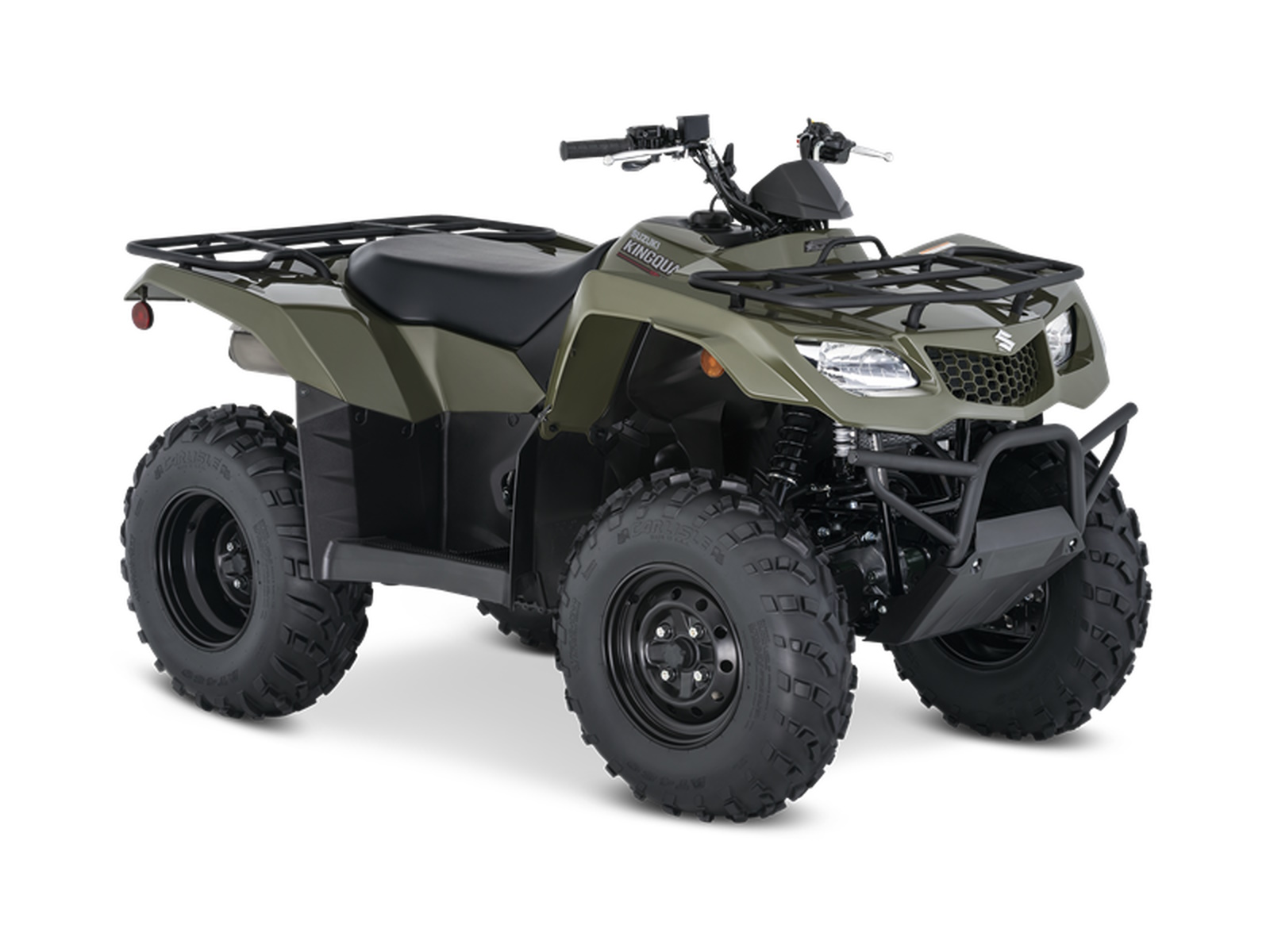

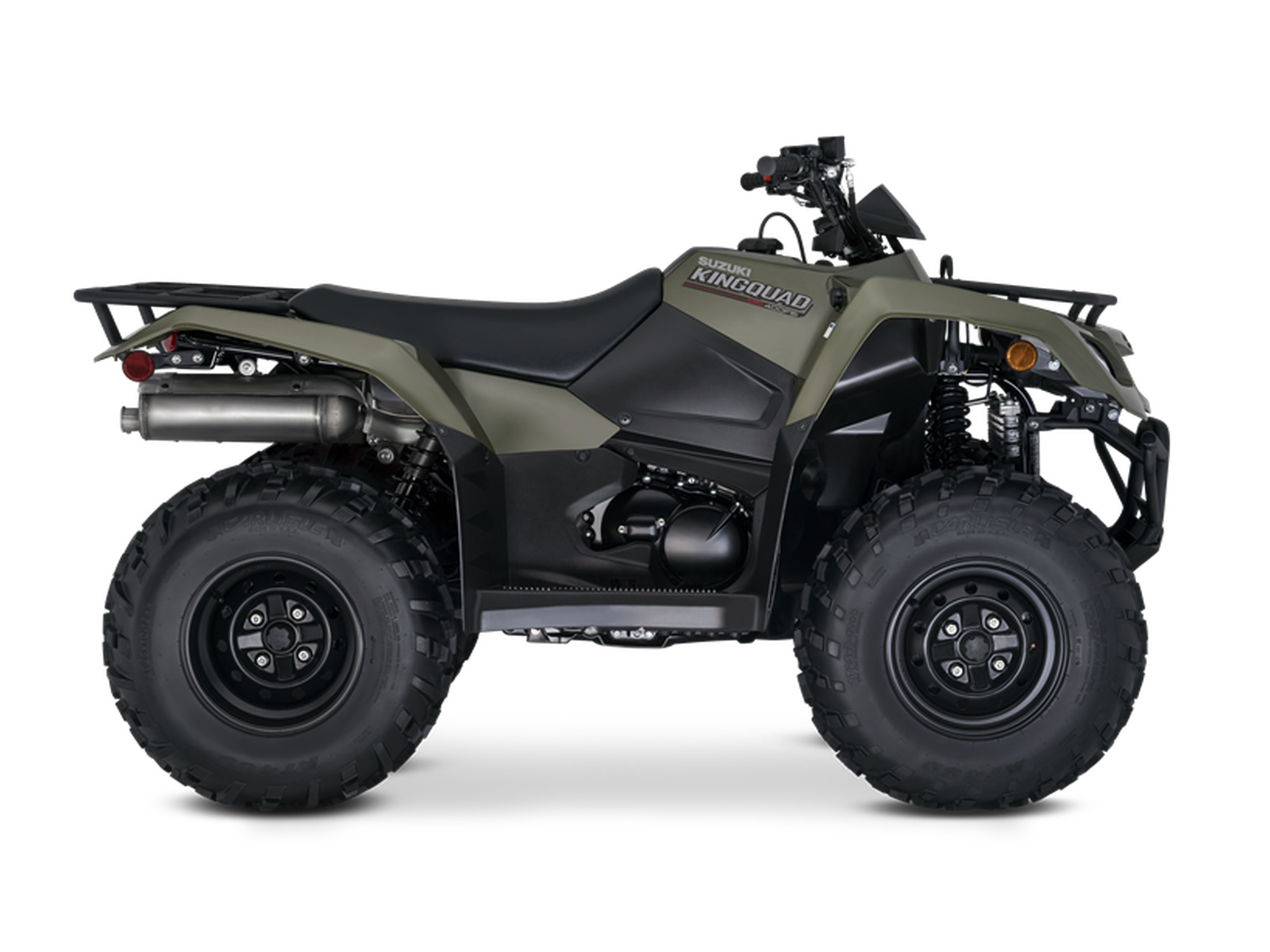

2023 Suzuki KingQuad 400FSi Terra Green

2023 Suzuki KingQuad 400FSi Terra Green

In 1983, Suzuki introduced the world's first 4-wheel ATV. Today, Suzuki ATVs are everywhere. From the most remote areas to the most everyday tasks, you'll find the KingQuad powering a rider onward. Across the board, our KingQuad lineup is an exceptional group of ATVs.

The 2023 Suzuki KingQuad 400FSi features a five-speed manual-shift transmission and semi-automatic clutch for those who favor a bit sportier performance. It cranks out an impressive amount of torque and has an incredibly wide power band for exceptional performance on the trail or on the job. A high-performance iridium spark plug and refined Pulsed-secondary AIR-injection (PAIR) system help provide outstanding fuel efficiency, clean emissions, and great performance.

Features may include:

Key Features

• Powerful, fuel-injected, 4-stroke engine is easy on gas
• Durable manual transmission with semi-automatic clutch
• Select 2WD or 4WD via a handlebar-mounted lever
• Large fuel tank and plush seat delivers extended, comfortable riding range
• Rugged bodywork and full racks to tackle any task

Engine Features

• The KingQuad 400FSi’s fuel-injected, 376cc, four-stroke, four-valve engine produces efficient power and driveablity.
• Suzuki's class-leading fuel injection smooth’s power output, especially in the mid-to-high range, and provides excellent cold starting. The system uses 3-D maps for optimum ignition, creating responsive yet environmentally compliant performance.
• Suzuki Advanced Cooling System (SACS) uses an oil cooler and thermostat-controlled cooling fan to shed engine heat during hard work or cargo hauling.
• Push-button electric starting has a start-in-gear function—when the rear brake is applied—allowing starting without shifting to neutral (as conditions permit).
• The Engine Control Unit (ECU) has slip control logic, which adjusts fuel injector duration and timing to improve drivability and grip in loose/slippery conditions.
• Highly efficient iridium spark plug contributes to better combustion, cleaner emissions and longer plug life. Engine starting under low temperature is also improved.
• Pulsed-secondary AIR-injection (PAIR) system and catalyst-equipped exhaust system help the ATV comply with Environmental Protection Agency (EPA) emission standards while maintaining a high level of performance.

Transmission Features

• Five-speed transmission with semi-automatic clutch with reverse allows the rider to select the ideal gear for maximum traction and fuel efficiency.
• Select 2WD or 4WD with the flip of a handlebar-mounted lever. The shaft drive system is reliable and durable and is nearly maintenance-free.
• Torque-sensing limited-slip front differential provides maximum traction and light steering when in 4WD mode.
• High/low selectable sub-transmission provides wide-ranging versatility.
• Automotive gate-type gearshift lever lets you conveniently choose high or low range, neutral or reverse.
• The ECU has a Reverse Mode that monitors vehicle speed, so higher engine rpm can be used when getting out of mud or loose soil in reverse mode.

Chassis Features

• Sporty bodywork features sharply angled, high-clearance fenders.
• Suzuki's exclusive T-shaped seat delivers rider mobility during sport riding or tackling difficult terrain. It’s also plush for extended riding comfort.
• Overall length is under 82 inches (208 cm), so the KingQuad fits into a 6.5-foot truck bed for easy transportation.
• Independent front A-arm suspension offers smooth performance and remarkable ground clearance with 6.7 inches (170.1 mm) of wheel travel.
• A swing-arm rear suspension with 6.7 inches (170.1 mm) of wheel travel and twin shock absorbers provides agile handling and plush riding.
• Dual front hydraulic disc brakes feature calipers with large, 34mm pistons and wide brake-pad surface area for increased stopping power and outstanding durability.
• Large, 25-inch Carlisle tires with aggressive tread offer consistent traction in wet conditions, yet make for a quiet, smooth ride on hard-packed trails.
• The tires are mounted to rugged steel wheels powder-coated with a durable matte black finish.
• Lightweight and strong plastic skid plates are sturdy to withstand trail pounding, yet slippery to let obstacles slide below.

Utility/Convenience Features

• Dual 35-watt headlights (with high and low settings) are part of the distinctive KingQuad grille appearance. Bright tail light helps make the ATV visible in dark conditions.
• Heavy-duty front and rear cargo racks let you take advantage of the ATV’s superb load capabilities. Wrinkle paint finish on the racks and front bumper is durable and scratch resistant.
• LCD instrumentation includes speedometer, odometer, trip meter, hour meter, clock, fuel gauge, and indicators for reverse, neutral, oil and FI (fuel injection).
• Automotive-style DC power outlet is included on front fender.
• Winch-ready mounts and wire conduit makes winch installation simple.
• Large, 4.2 gallon (16.0 L) fuel tank provides outstanding riding range.
• Full floorboards with integrated raised footpegs provide protection.
