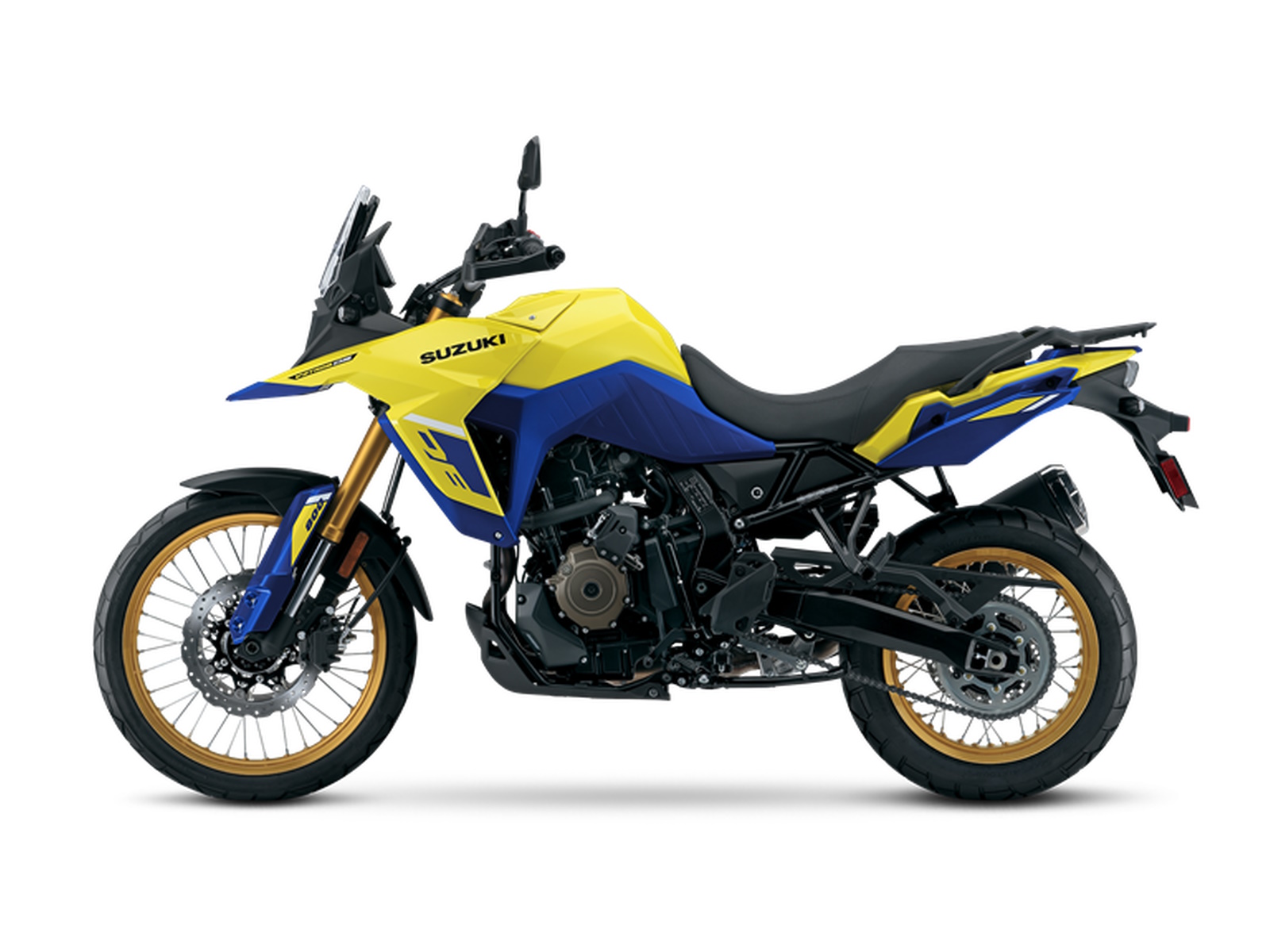

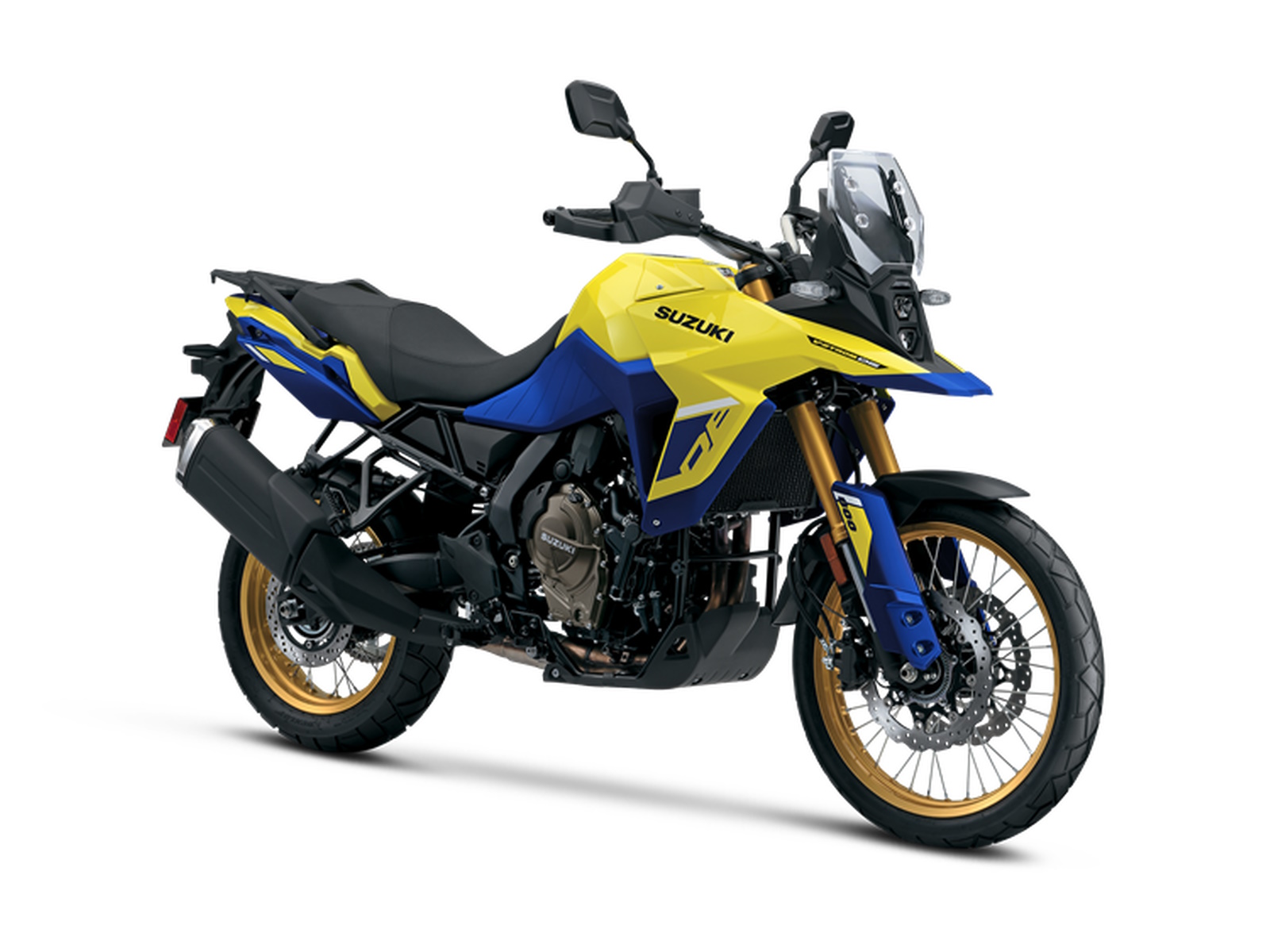

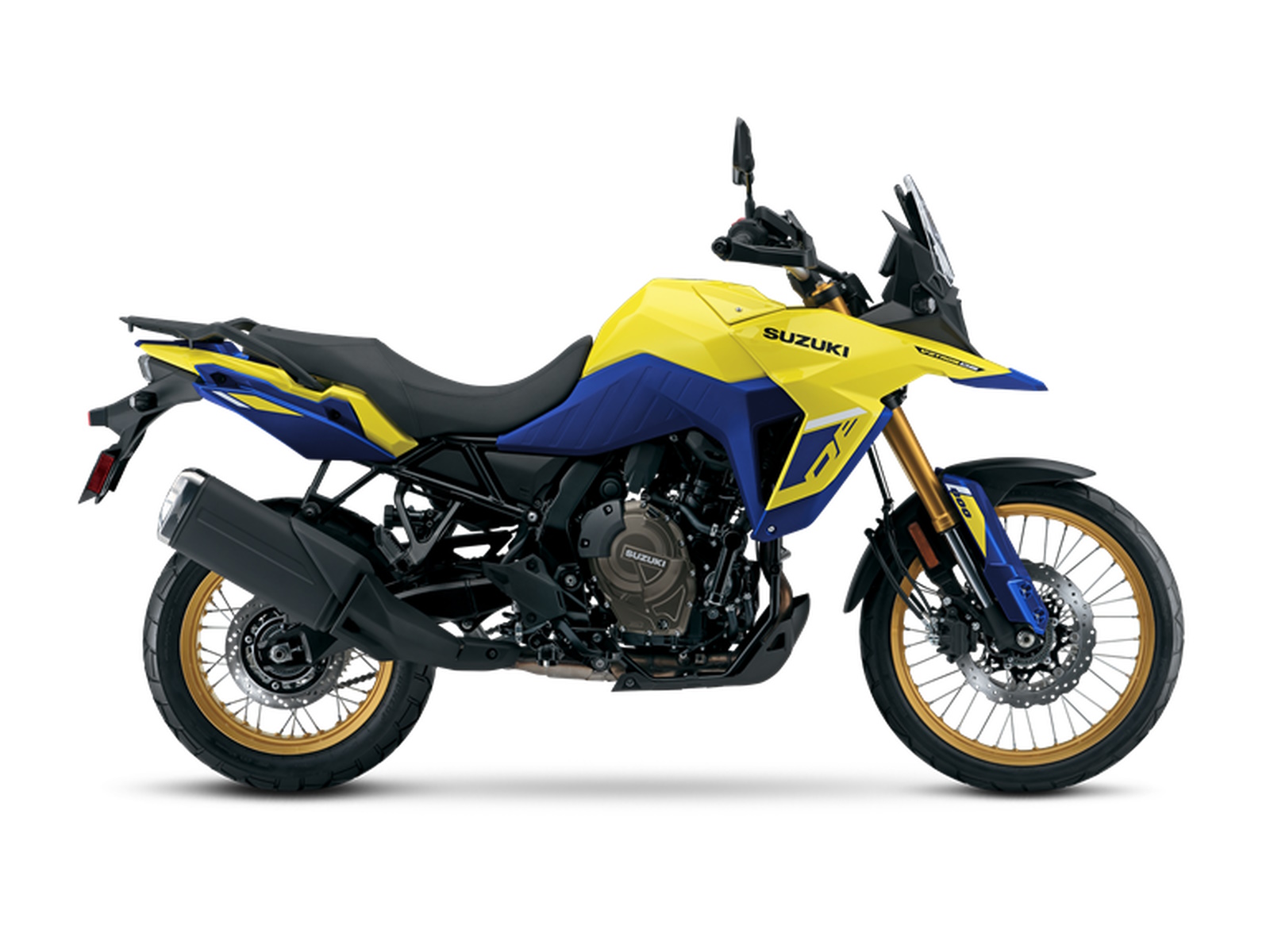

2024 Suzuki V-STROM 800DE Champion Yellow No. 2

2024 Suzuki V-STROM 800DE Champion Yellow No. 2

Advance your Adventure by getting behind the handlebars of the most dirt-worthy V-Strom ever. Suzuki’s all-new 2024 V-STROM 800DE brings any-road ability to the mid-size Adventure category. Ride anywhere, propelled by a fully new 776cc parallel-twin engine in a chassis with the most ground clearance of any V-STROM thanks to long, fully adjustable suspension, plus spoke-style wheels led by the 21-inch hoop up front shod with the latest Dunlop ADV tires.

The new 776cc DOHC parallel-twin engine employs 270-degree crankshaft timing with the industry-exclusive Suzuki Cross Balancer to deliver a smooth, torque-rich experience. This new machine is ideal for Adventure riders who desire more power than a 650cc engine can deliver and does so in an economical and reliable way.

The new rugged steel backbone frame takes advantage of the engine’s compact size, resulting in a chassis that is nimble and stable on paved roads or on dirt trails. The long, inverted fork is fully adjustable, as is the rear shock absorber that employs a remote, hand-operated hydraulic spring preload adjuster so tuning for a passenger or cargo takes just seconds.

A new, color 5-inch TFT multifunction instrument panel provides the rider access and on-the-fly control over the Suzuki Intelligent Ride System (S.I.R.S.) suite of advanced electronic control systems that include the Suzuki Drive Mode Selector, the Suzuki Traction Control System, and Suzuki’s Bi-Directional Quick Shift system. The V-STROM 800DE’s S.I.R.S. features a new GRAVEL Traction Control* mode and rear ABS** that can be switch off for off-road riding.

Ride all day in comfort and control thanks to a wide, vibration-damping tapered handlebar, strong seat, and wide footpegs. An adjustable windscreen sits above a pair of stacked, compact Mono-focus LED headlights that throw out big-time illumination and the styling is unmistakably V-STROM with the Dakar Rally-style beak that was developed by Suzuki. Don’t wait, advance your fun, advance your off-road chops, and advance your peace-of-mind as you Advance your Adventure with your own V-STROM 800DE.

Features may include:

• The compact 776cc parallel-twin engine uses a 270-degree firing order for strong torque production and is equipped with Suzuki’s exclusive Cross Balancer system for smooth operation.
• The steel frame and sub-frame, and aluminum swingarm are supported by the longest suspension travel and highest ground clearance of any V-STROM model, plus a 21-inch spoke-style front wheel brings true off-road capability.
• Visually stunning, the angular bodywork retains Suzuki’s distinctive Adventure “beak” and is available in popular Champion Yellow or new Pearl Tech White colors, topped with modern, subtle graphics.
• The Suzuki Intelligent Ride System (S.I.R.S.) includes Traction Control with a trail-oriented GRAVEL mode plus rider-adjustable ABS** with two levels or sensitivity plus the ability to switch off the rear wheel ABS when riding off-road.
• Modern electronics include the Bi-directional Quick Shifter, Ride-by-Wire throttle, and a bright, color TFT instrument panel, plus the Mono-focus LED headlights which are vertically stacked with a position light below a trim, height-adjustable windscreen.

Engine Features

• The 776cc parallel-twin DOHC engine delivers a superb balance of smooth controllable torque-rich power from low RPM and freely revs up to its peak power output
• The 270-degree crankshaft configuration provides similar power delivery characteristics as the 90-degree V-twins used in other V-STROM models, while producing a unique and exciting exhaust note.
• The spaced nature of the engine’s power pulses enhances traction and contributes to strong power output at extremely low speeds, making the V-STROM 800DE easier to control on forest roads and trails.
• Suzuki Cross Balancer technology, patented by Suzuki and was used for the first time on a production motorcycle in the V-STROM 800DE, helps create a compact, lightweight design that delivers smooth operation.
• The pistons were developed using FEM (Infinite Element Method) analysis to maximize strength and minimize weight.
• The 84mm cylinder bores inside the aluminum die-cast cylinders are plated using Suzuki’s Suzuki Composite Electrochemical Material (SCEM) process. Originally developed for racing and proven on the track, the SCEM cylinder promotes better heat dissipation, reduces friction, and provides a consistent wear-resistant seal to the pistons’ rings.
• Dual, linked 42mm electronic throttle bodies provide an authentic response and feel to the rider’s throttle operation.
• The V-STROM 800DE employs two 10-hole, long-nose, 49 PSI (343kpa) high-pressure-feed fuel injectors that maximize fuel atomization for better combustion efficiency and lower fuel consumption.
• The 6.0L air cleaner box shape and intake pipe lengths were created using computer-aided design to help maximize peak power output plus strong torque production at low engine speed. Positioned under the seat, the air box size and shape contribute to the V-STROM 800DE’s slim and compact chassis.
• The stainless-steel 2-into-1 exhaust system uses a high flow, dual-stage catalytic converter inside the mid-pipe that helps satisfy worldwide emissions standards as a long, upswept muffler is attractive and well positioned for future accessory mounting.
• A large capacity radiator effectively cools the V-STROM 800DE’s parallel twin. A thermostatically controlled cooling fan helps stabilize coolant temperatures at low speed and stops.
• The unique cooling system inlet control thermostat valve helps maintain consistent engine temperature and smooths the idle speed during warm-up. This helps stabilize combustion and contributes to reduced exhaust emissions.

Driveline Features

• The six-speed transmission features gear ratios that deliver exciting acceleration, whether shifting normally or when using the standard-equipment Bi-directional Quick Shift system to shift without clutch operation.
• The V-STROM 800DE’s precise shift linkage helps the rider easily and quickly select the ideal gear for the riding conditions.
• A sensor on the shift rod sends shifter movement data to the ECM, so the Bi-directional Quick Shift system precisely responds to the rider’s actions.
• The transmission’s output is managed by the Suzuki Clutch Assist System (SCAS). This system works like a slipper clutch by allowing a small amount of clutch slip to enable smooth downshifts. It also works as an assist clutch, increasing plate pressure under acceleration, but always keeps the clutch lever pull light and precise.
• This large-diameter, wet, multi-plate clutch uses a precise cable-activated release, providing the rider with a light pull that also has superb friction-point feel.

Chassis Features

• Designed around the new, compact parallel-twin engine and constructed with rugged steel pipe, the V-STROM 800DE’s backbone style frame was engineered to provide the strength needed for excellent straight-line stability and nimble handling when negotiating rugged trails or touring at highway speeds.
• The engine is suspended and precisely fit to the frame to create a rigid chassis that also provides the compliance required for a variety of riding adventures.
• The removable steel sub-frame has a narrow seat rail width that results in a slim seat profile that helps riders control the motorcycle with their legs.
• The frame and engine package helps create an off-road friendly chassis geometry with a long wheelbase and rake, tall ground clearance, and a wide handlebar grip.
• The engine’s short length permits an ergonomic design that places the rider’s hip point further forward than it would be on other Adventure motorcycles. This enables riders to shift their weight forward to enhance control over rough terrain and when negotiating tight corners.

Body & Styling Features

• When developing the styling for the V-STROM 800DE, Suzuki’s design team chose to carry on the heritage of the V-STROM series while presenting a thoroughly modern look in line with current trends, and blend in other features to push the motorcycle ahead of others in its category. And the total look must reflect the all-around capabilities of this extraordinary Adventure model.
• Retaining the prominent “beak” that was pioneered on Suzuki’s legendary DR-Z Dakar racer and the large DualSport DR-Big, the lines of the body work are sharper with flatter surfaces to create a tough yet sophisticated look. Different colored panels feature angular lines that further amplify the V-STROM 800DE’s modern, aggressive look.
• The body graphics are modernized and presented in a subtle manner to not detract from the motorcycle’s overall appearance.
• The “DE” decals on the sides of the cowling pieces in front of the engine reflect the image of the competition numbers used on motocross and other competition motorcycles, while the “V-STROM” logo continues the motif introduced with the V-STROM 1050DE.
• The V-STROM 800DE uses a new three-piece front fender assembly that combines the effectiveness of a conventional V-STROM fender with the protection of fork guards like those used on an MX bike.
• This Suzuki-unique structure yields a stronger connection to the fork legs that can better withstand the shocks encountered when riding on unpaved surfaces.
• An added aesthetic benefit of this front fender assembly is the fork guards are color coordinated to other body parts.
• Attention to detail extends to the engine as the clutch cover and magneto cover have a bronze-like finish that complements the V-STROM 800DE’s body color, while the SUZUKI name on the cover is in a contrasting color to bring attention to the new, fully modern engine.
