2026 test 456 Pan America 1250 Special Black/Blood Orange/Cast
Get in Touch
Description

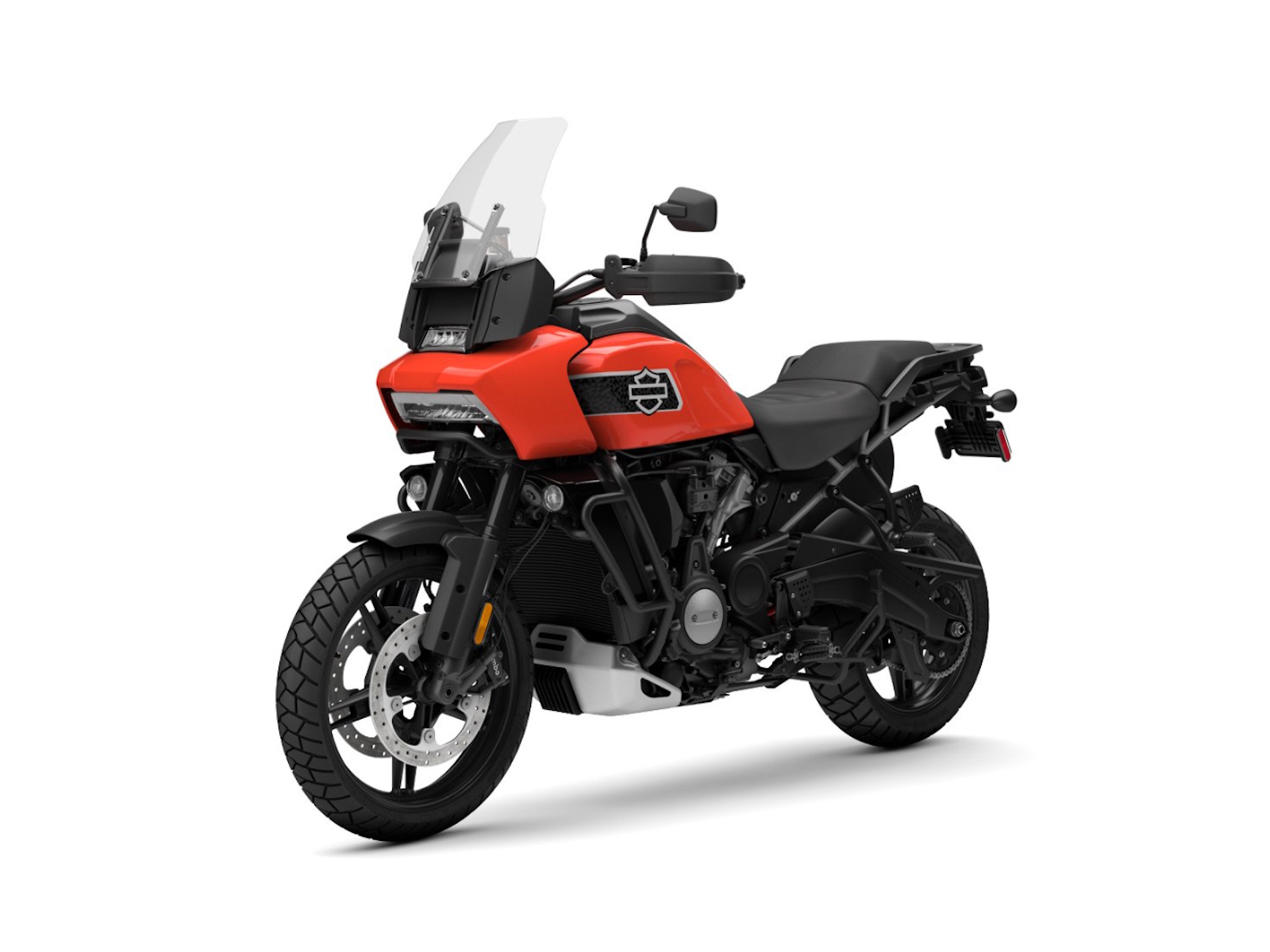

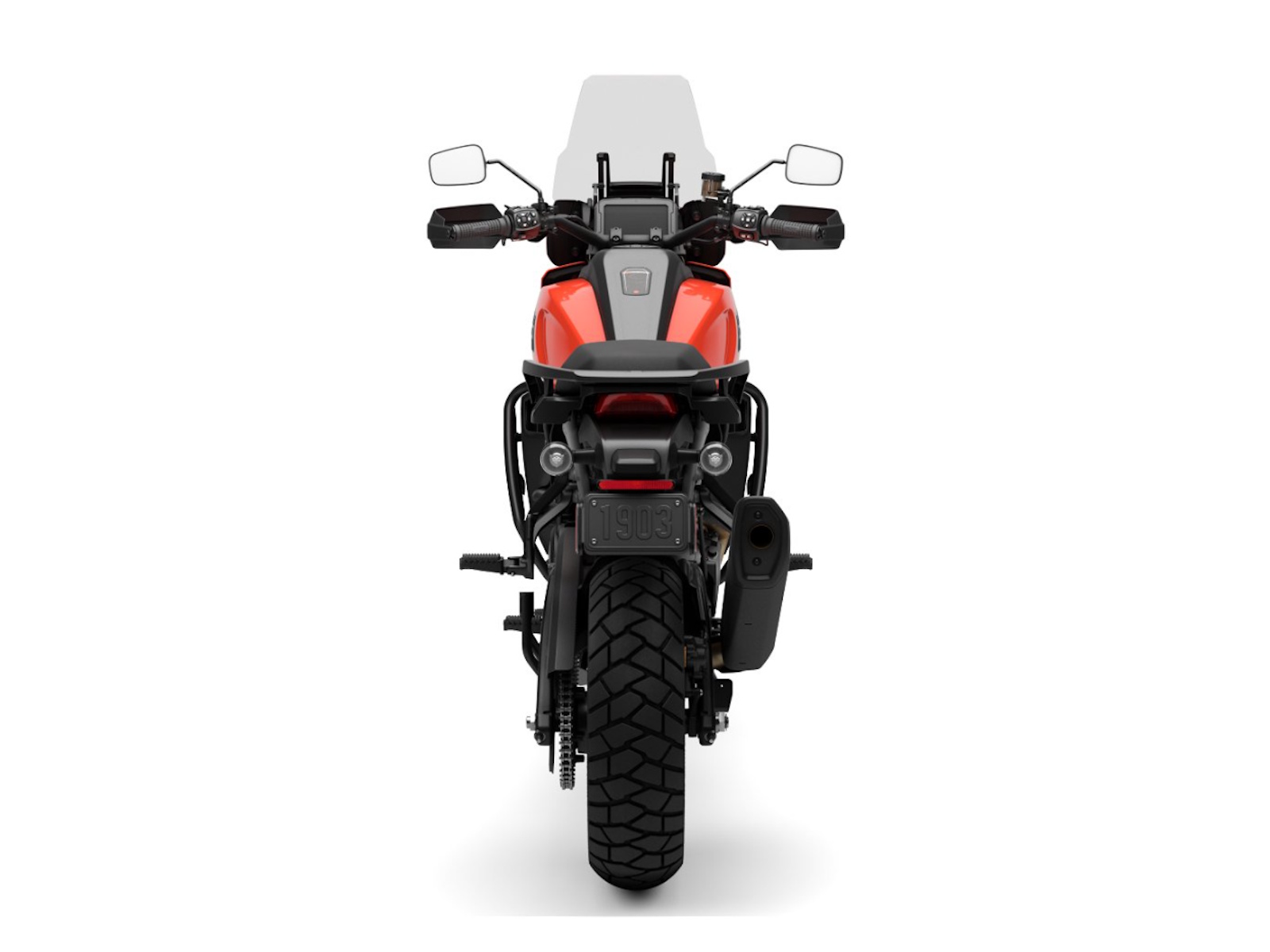

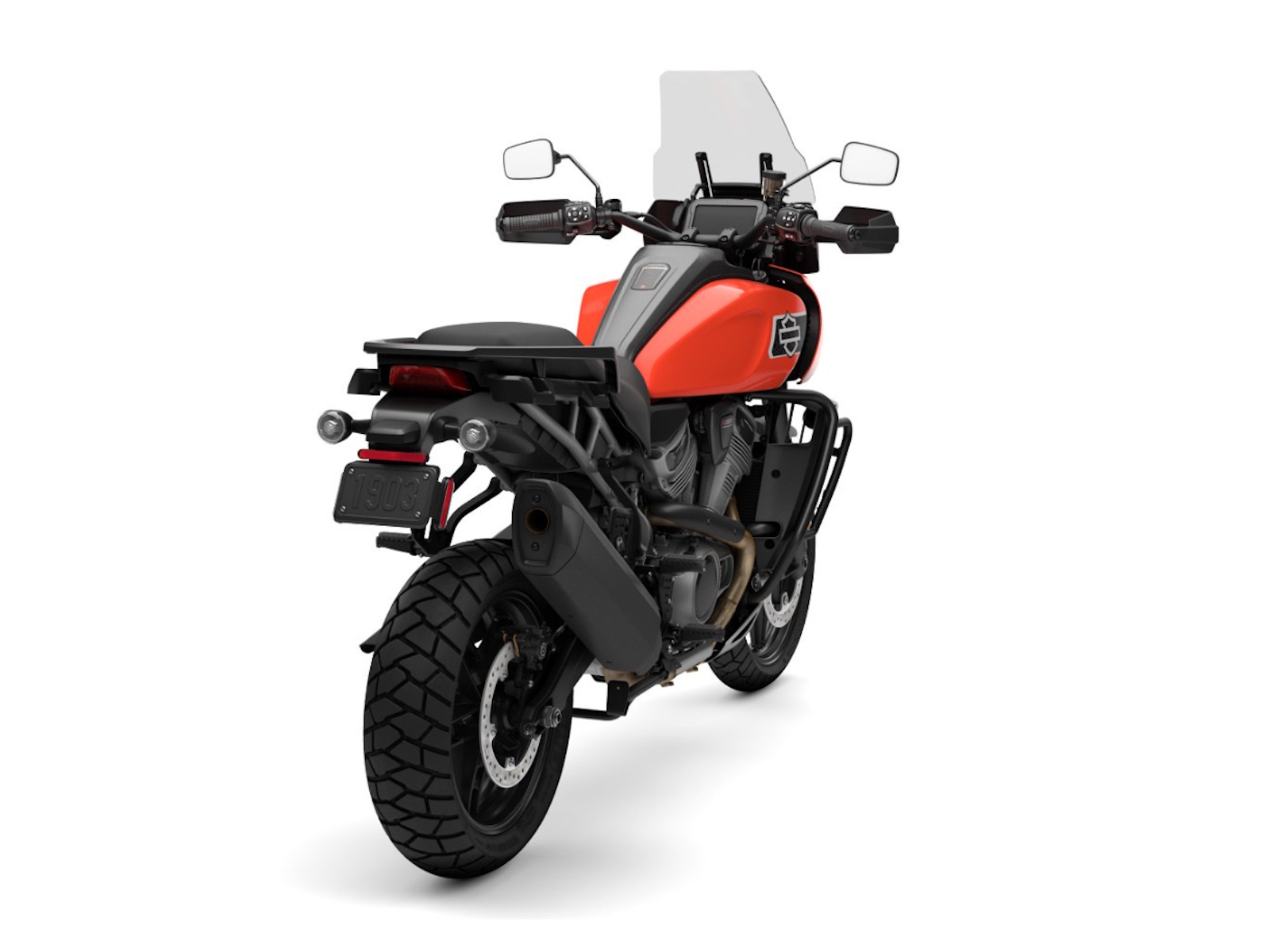

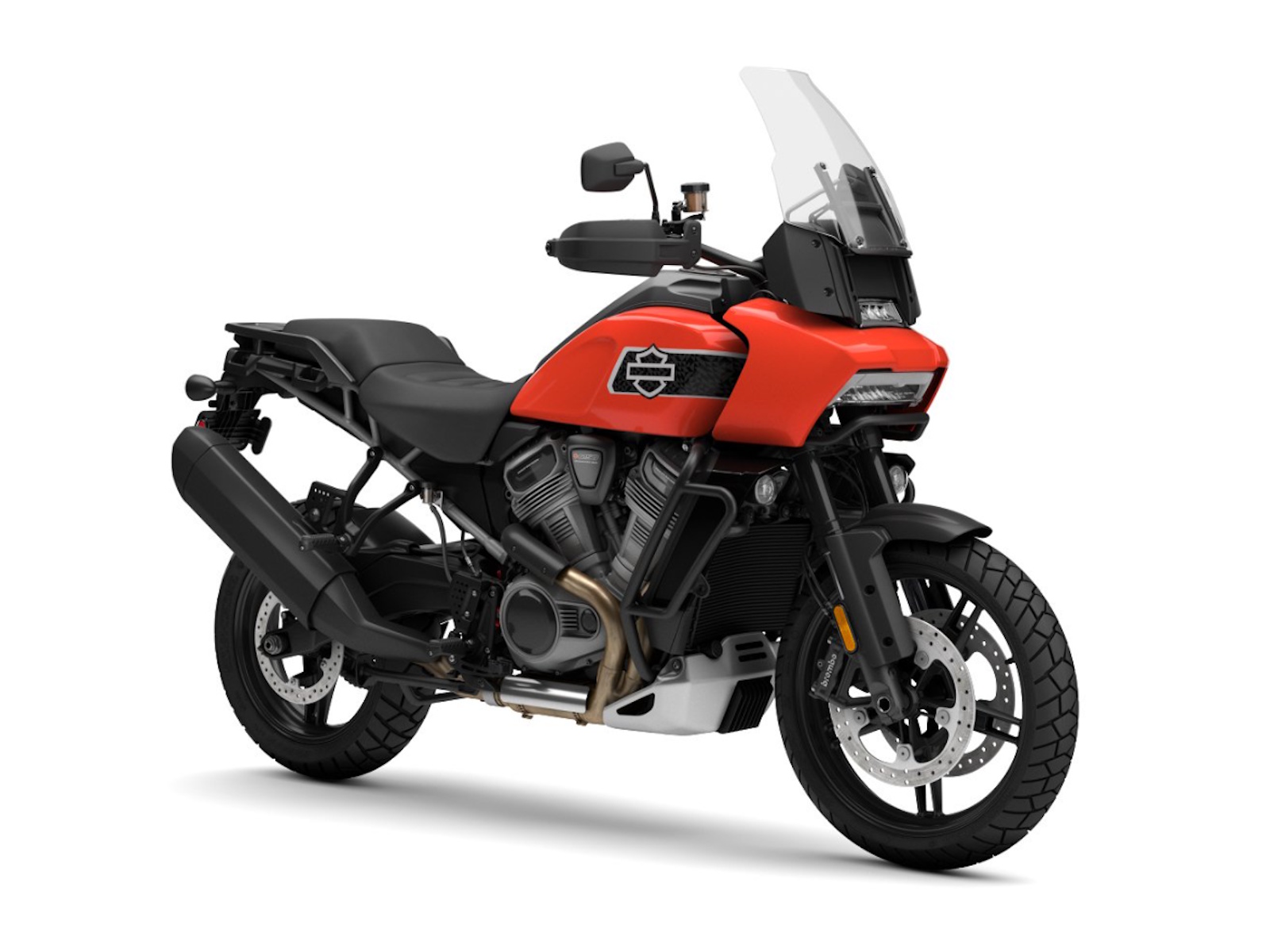

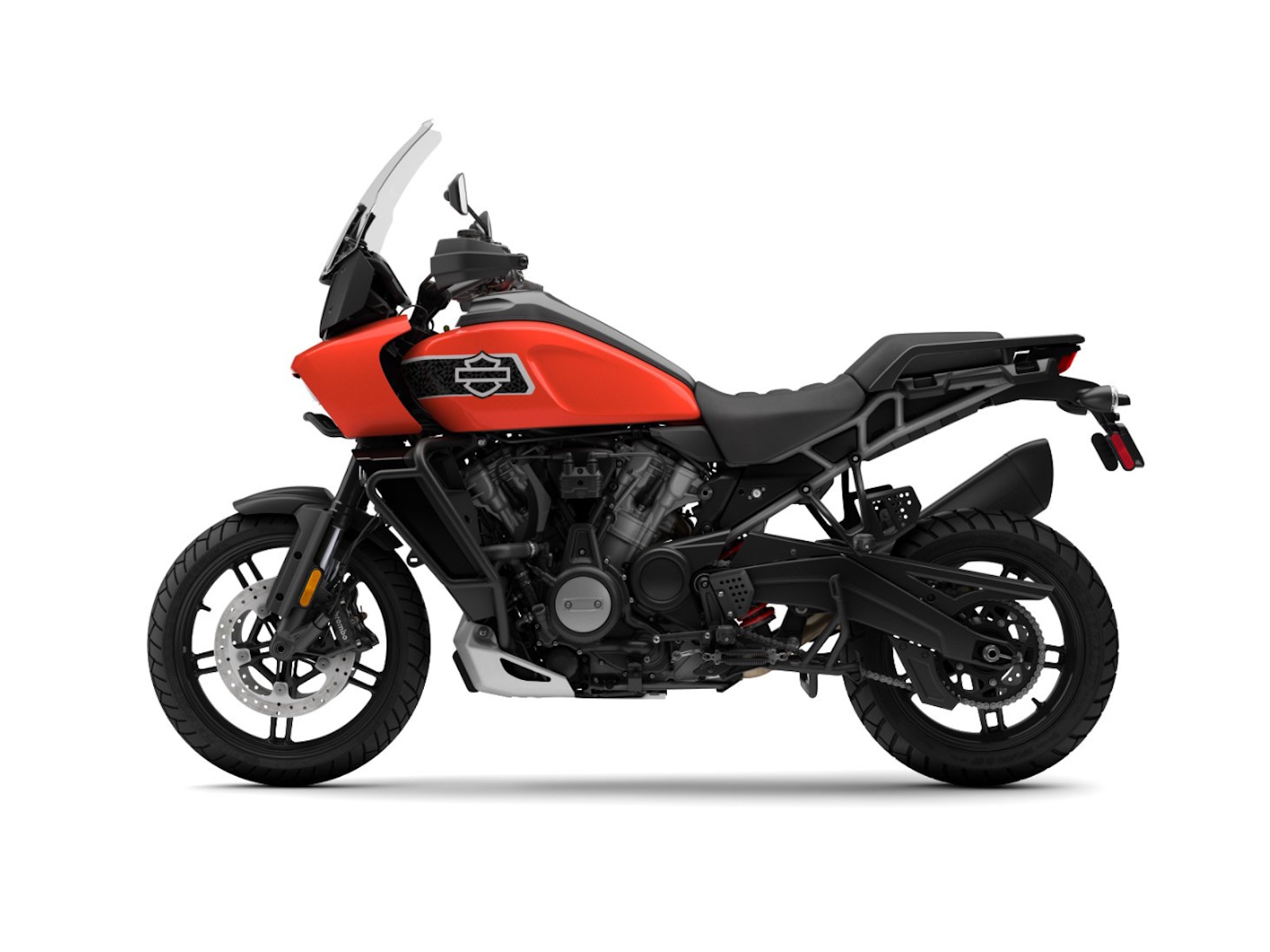

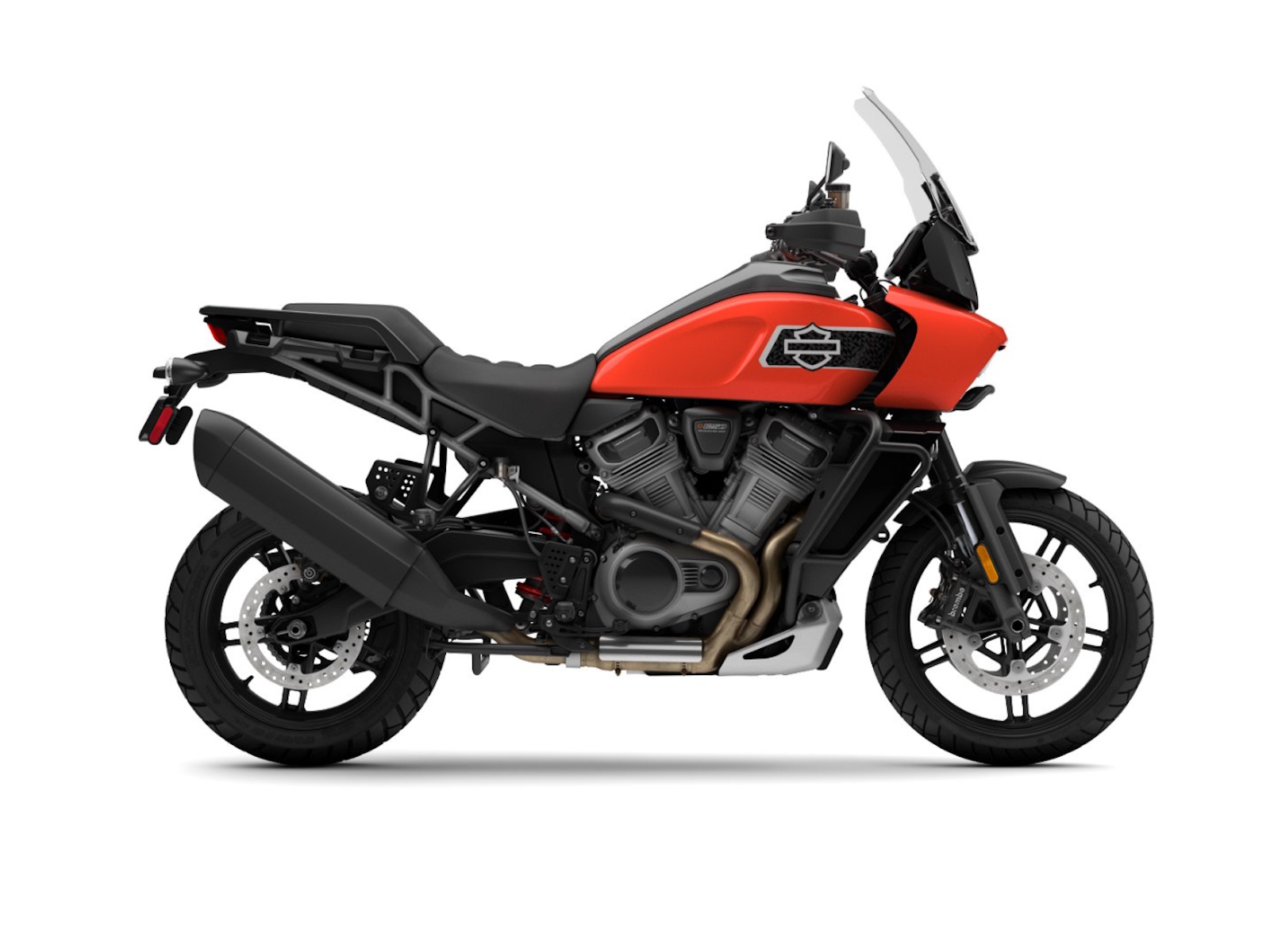

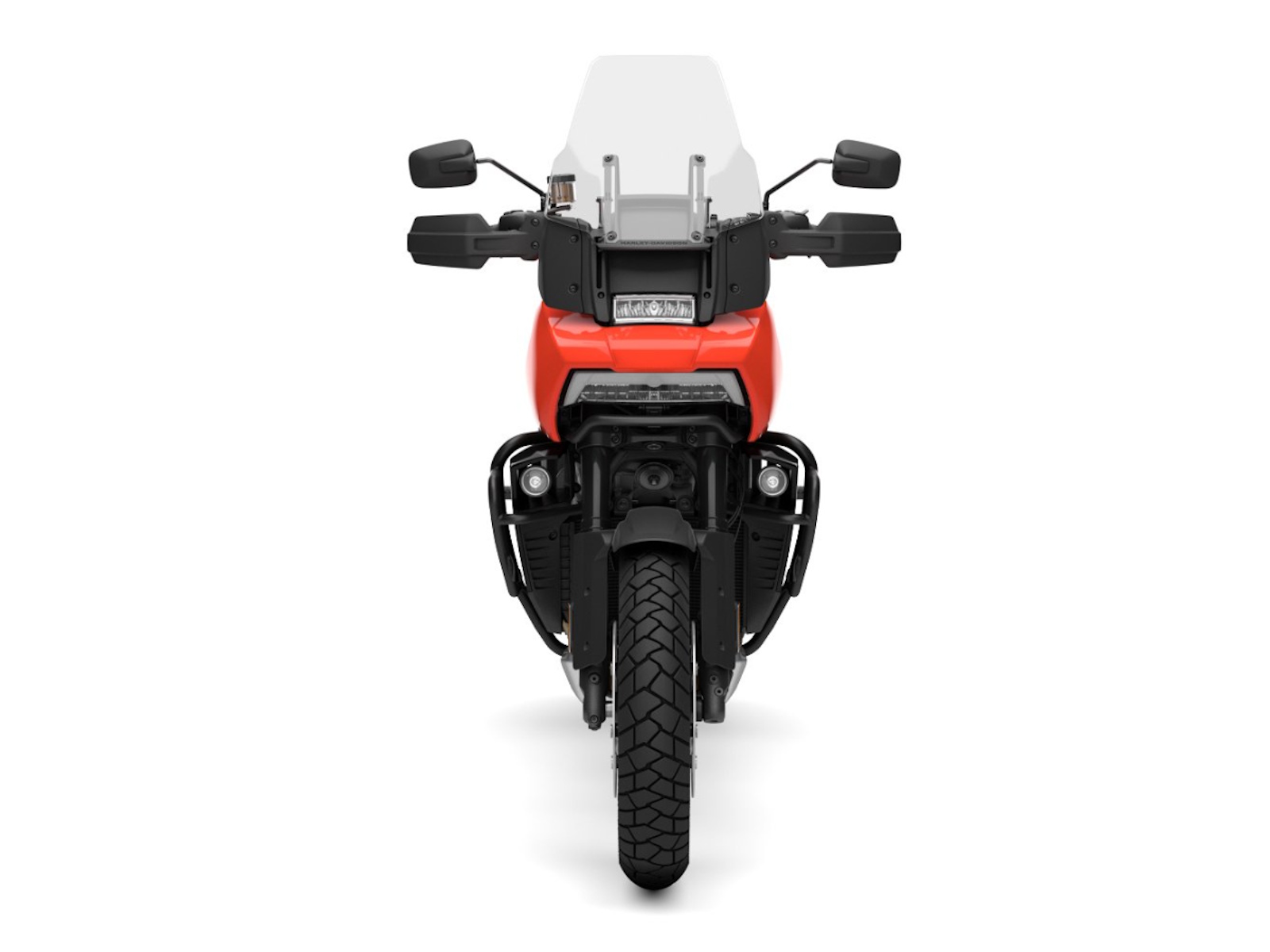

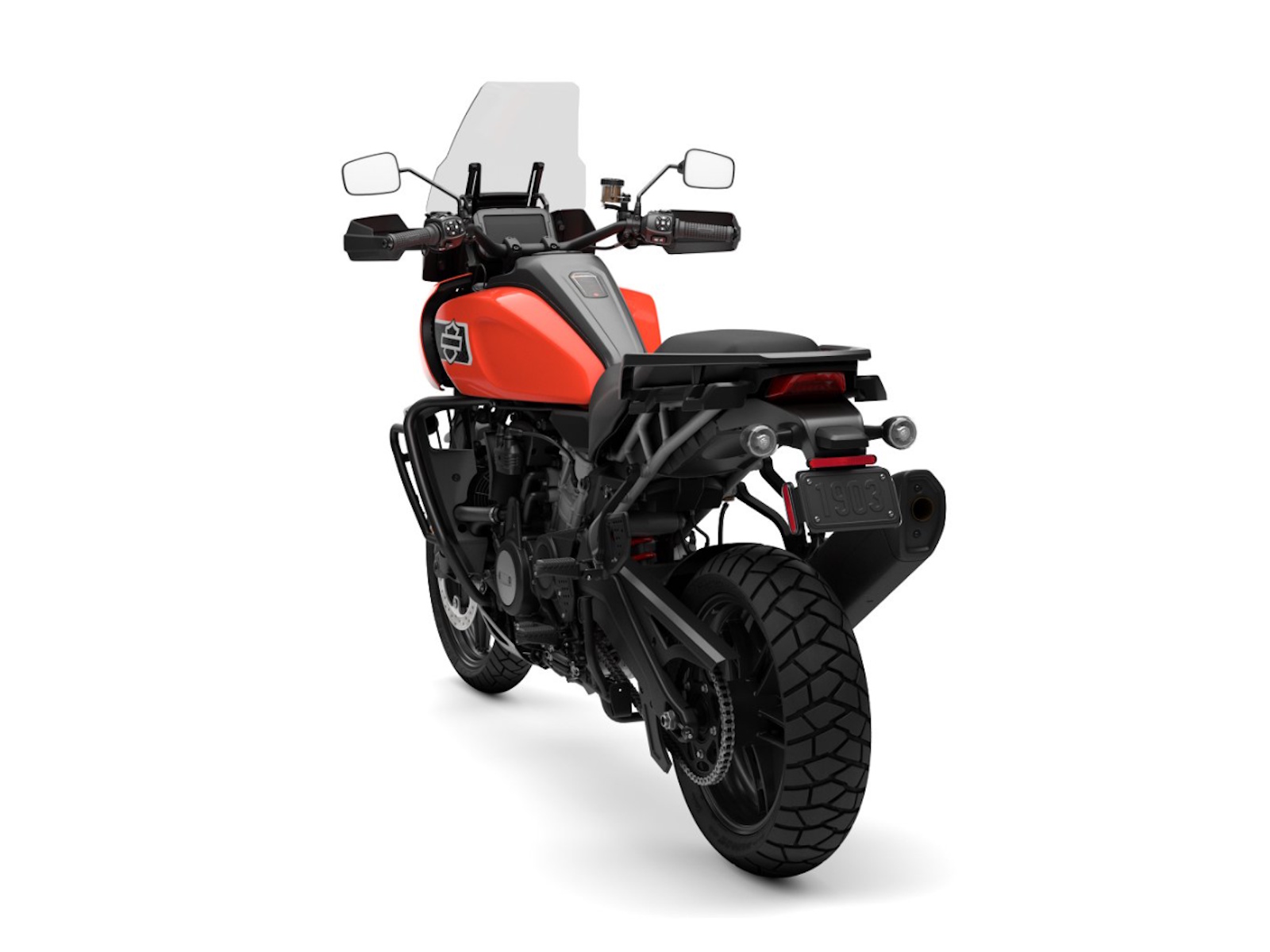

2026 Harley-Davidson Pan America 1250 Special Black/Blood Orange/Cast
Built to Go Where the Road Won't
From city slab to backcountry rock, the Pan America 1250 Special delivers 150 HP of adaptable power at the flick of the throttle, in a package that weighs less than 580 lbs, has Rider Safety Enhancements, a 6.8" touchscreen display and optional Adaptive Ride Height. It’s packed with tech and built to take you wherever you want to go, even if the road doesn’t.
Features May Include:
- Anti-lock Brake System (ABS)
- Electronic Linked Braking (ELB)
- Traction Control System (TCS)
- Drag-Torque Slip Control System (DSCS)
- Vehicle Hold Control (VHC)
- Tire Pressure Monitoring System (TPMS)
- Cornering Enhanced Anti-lock Brake System (C-ABS)
- Cornering Enhanced Electronic Linked Braking (C-ELB)
- Cornering Enhanced Traction Control System (C-TCS)
- Cornering Drag-Torque Slip Control System (C-DSCS)
- Enhanced Lift Mitigation
Info
Industry
Powersports
Make
test 456
Model
Pan America 1250 Special
Trim
Black/Blood Orange/Cast
Year
2026
MSRP
20524
Category
Motorcycle
Subcategory
Adventure
Specs
Length
89.4 in
Width
38.4 in
Seat Height
(Laden) Low/High Seat Position; 31.1 in/32 in
Ground Clearance
6.9 in
Rake
25
Trail
4.3 in
Wheelbase
62.4 in
Front Tire
Michelin® Scorcher “Adventure”, Radial | 120/70R19 60V
Rear Tire
Michelin® Scorcher “Adventure”, Radial | 170/60R17 72V
Front Wheel (Dia)
19 in
Front Tire Width
120 mm
Rear Tire Width
170 mm
Rear Wheel (Dia)
17 in
Fuel Capacity
5.6 gal
Fuel Type
Gas
Oil Capacity
w/ filter: 4.75 qt
Weight (Dry)
In Running Order: 578 lb
Engine Type
Revolution® Max 1250
Bore x Stroke
4.134 in x 2.846 in | Displacement: 76.4 cu in
Compression Ratio
13.0:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-1-into-1; catalyst in header
Torque
Engine: 94 ft-lbs (6750 rpm)
Horsepower
150 hp / 112 kW @ 8750 rpm
Fuel Efficiency
46 mpg
Drive Train
Primary Drive: Gear, 49/89 ratio | Gear Ratios(Overall) 1st: 13.11 | 2nd: 9.687 | 3rd: 7.509 | 4th: 6.057 | 5th: 5.08 | 6th: 4.436
Chassis
Front Fork: 47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps
Rear Shocks
Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
Wheels
Front and Rear Type: Aluminum cast, satin black | Optional Style Type: Annodized aluminum tubeless laced
Front Brake
Caliper Type: Radially mounted, monoblock, 4-piston caliper | Rotor Type: Dual rotor, floating, tower-mounted
Rear Brake
Caliper Type: Floating, single piston caliper | Rotor Type: Solid uniform expansion rotor
Headlight(s)
Lights, Rear Turn Signals+ Headlamp: Daymaker® Adaptive LED Headlamp with 6-segment LED banking lamp
